PV Logic Flexi MHD 200watt Solar Panel Kit

PV Logic MHD 200watt flexi solar panel

Manufactured using the latest solar cell technology to create super efficient power generation, the Mono High Density (MHD) Flexi solar panel is hard wearing and ultra lightweight. They are perfect for energy hungry applications as multiple panels can joined together to create a solar array. The PV Logic MHD panels are ideal use on a motorhome roofs especially pop top roofs to maximise power output in the space available. Suitable for both flat surfaces as well as those with a slight curve,

The PV Logic MHD Flexi solar panels combines shingled monocrystalline solar cells to deliver super efficient power generation with a tough ETFE top sheet for longevity and robust impact resistance.

At just 2mm thick, this ultra-lightweight panel is ideal for flat roofs as well as surfaces with a slight curve making it the perfect choice for camper vans and boat decks. To ensure long term performance in the most extreme environments, the panels are tested to ASTM B117 - ISO9227 for saltwater spray over 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892.

The PV Logic MHD panels come with a choice of top or rear cable exit and comes with either a 4m connection cable or 2 x 0.9m connection cables fitted with MC4 connectors and 2 x 3m cable with MC4 connectors so the panels can be easily joined together to create a solar array.  Depending on the size of the panel and a 4-year module warranty.

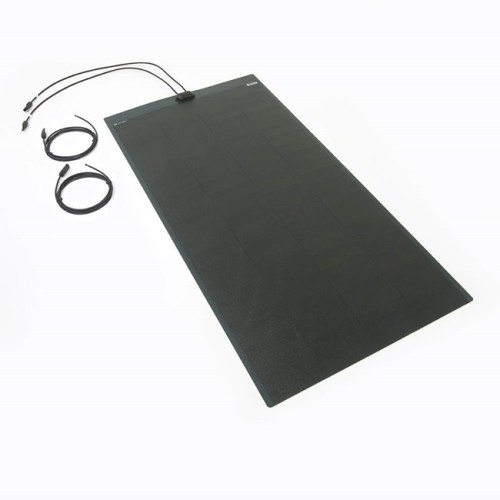

Specifications - Top exit

·        Nominal Power (Wp) (Watts): 200watts

·        Peak Output – 8.2amps

·        Cable Connector: 2 x 0.9m connection cables fitted with MC4 connectors and 2 x 3m cable with MC4 connectors

·        Dimensions - 1435 x 710 x 2mm

·        Weight – 3.5kg

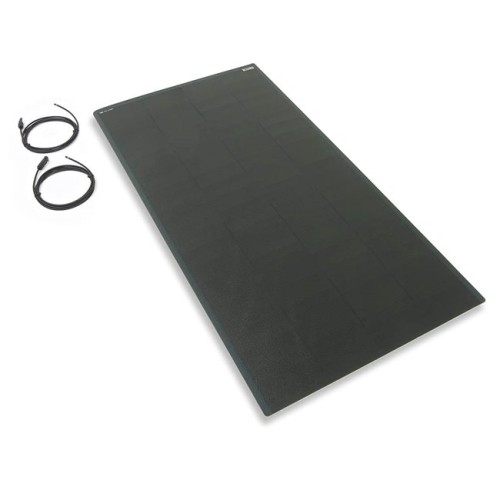

Specifications - Rear (bottom) exit.

·        Nominal Power (Wp) (Watts): 200watts

·        Peak Output – 8.2amps

·        Cable Connector: 2 x 0.9m connection cables fitted with MC4 connectors and 2 x 3m cable with MC4 connectors

·        Dimensions - 1380 x 710 x 2mm

·        Weight – 3.4kg
