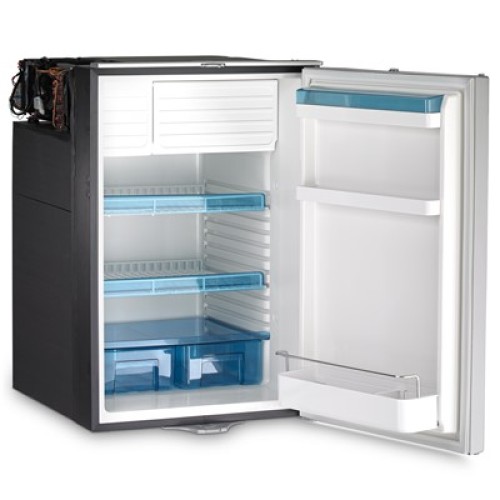

Dometic CRX140 Fridge

The Dometic CRX140 Fridge with Capacity 130L (including 11L ice box). 12V or 24V DC. Power consumption approx 1.9 - 2.5Ah per hour depending on ambient conditions.

New electronic compressor control reduces power consumption by up to 25% due to intelligent compressor and fan speed control. Soft touch controls with 5 temperature settings down to -15 degrees C. Stainless steel fittings. Brushed steel effect door panel. Optional standard or flush mount frame kits available.

Features:

·         Intelligent electronic control of the compressor speed – up to 25% less energy consumption.

·         Fan speed automatically adjusts to the ambient temperature – minimal noise.

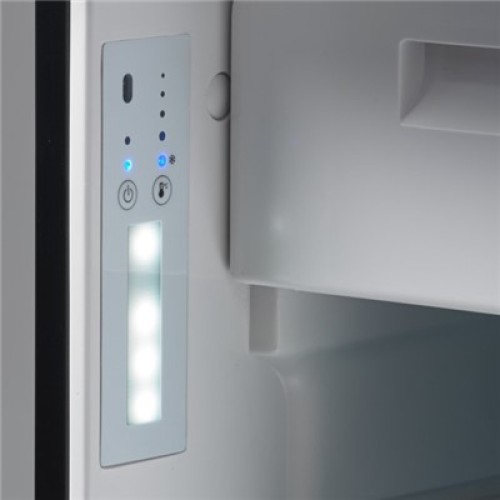

·         Perfect temperature control due to new designed soft touch control panel.

·         Door with stainless steel effect front (Easy-to-change decor panel).

·         Standard or flush-mount installation frame available as accessory.

·         230-volt connection with low-priced mains adapter.

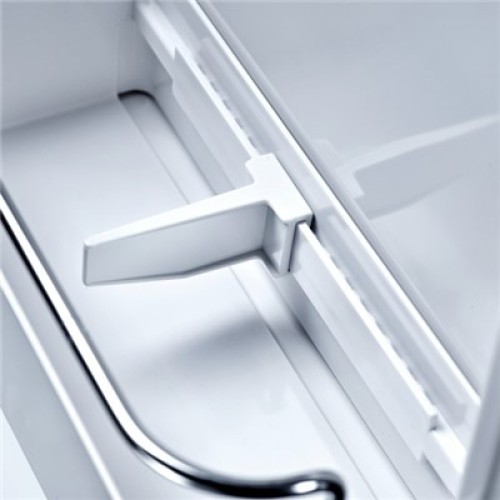

·         Door lock with dual function (locking / ventilation).

·         Bright LED light with infrared sensor.

Technical Specification:

Storage Volume: 130 L

Freezer Compartment: 11.0 L

Voltage: 12/24v DC

Average Power Consumption: approx. 65 W

Consumption At 12 V:

1.9 Ah/h at +25°C ambient temp

2.5 Ah/h at +32°C ambient temp

both at +5°C interior temp

Temperature Range: approx. +12 to -15°C

Energy Class: A+

Insulation: Polyurethane (PU) foam all around

System:

·         Condensation drainage via hose connection

·         Five temperature settings selectable via soft-touch control panel

·         4 installation points for fastening from inside

·         Automatic reverse pole protection

·         Fully hermetic compressor with integrated control electronics

·         Low voltage protection / electronic fuse

Material:

Body: with coated metal frame

Door frame: plastic

Fittings: stainless steel

Fittings: stainless steel

Colour:

Cabinet: black

Door frame: silver

Door panel: Matt-silver (brushed stainless steel appearance)

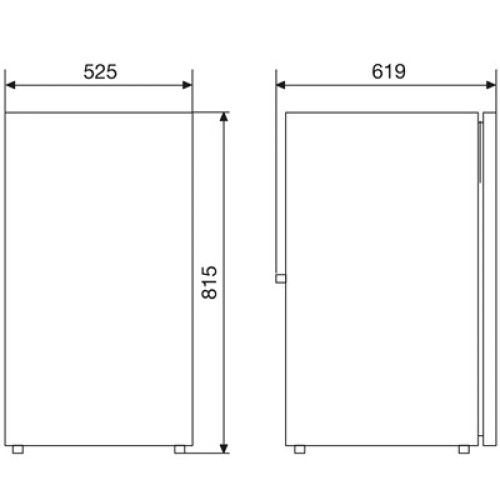

Dimensions (W x H x D) 525 x 815 x 620 mm

Built-in Dimensions:

With flush-mount frame: 551 x 817 x 668 mm

With standard frame: 529 x 817 x 620 mm

Weight (Approx.): 27.5 Kg

Test Mark: TÜV/GS, e-certified (Automotive EMC Directive)
