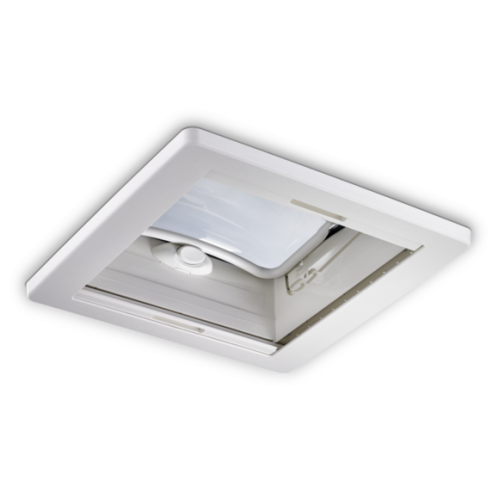

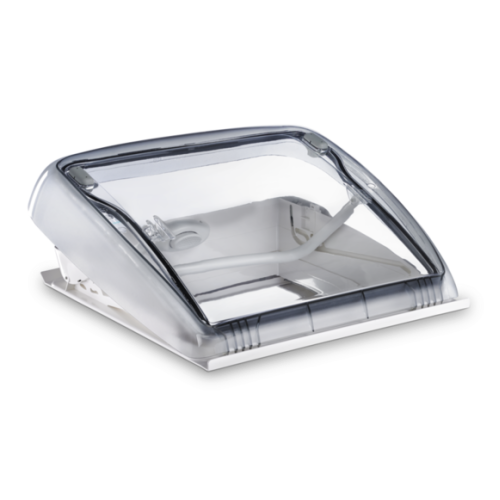

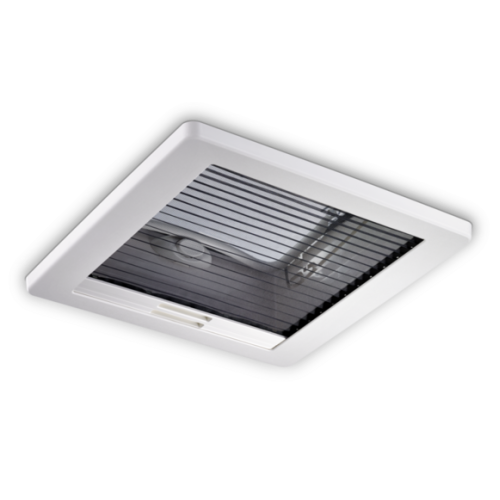

Dometic Mini Heki Plus Rooflight

DOMETIC MINI HEKI PLUS STYLE

Every caravan, motorhome, vehicle instantly seems so much more inviting when equipped with this compact roof light, which admits just the right amount of light into the interior. Opens to three positions: fully open, half-open and bad-weather position.

• FLEXIBILITY - THREE POSITIONS
• HIGHLY INSULATING - DOUBLE ACRYLIC GLAZING
• AERODYNAMIC -

STURDY AND COMPACT

Every caravan, motorhome, vehicle instantly seems so much more inviting! Despite their compact standard sizes, the Mini Hekis provide the optimum amount of light. Both models feature a lightly tinted, aerodynamically formed glass dome. The Mini Heki Style even features double glazing, and can be opened in three different positions (incl. poor weather position). The single glazed Mini Heki S can be opened to all sides using operating handles. The Mini Hekis are equipped with a single-pleated darkening screen and a fly screen.

...AND MORE

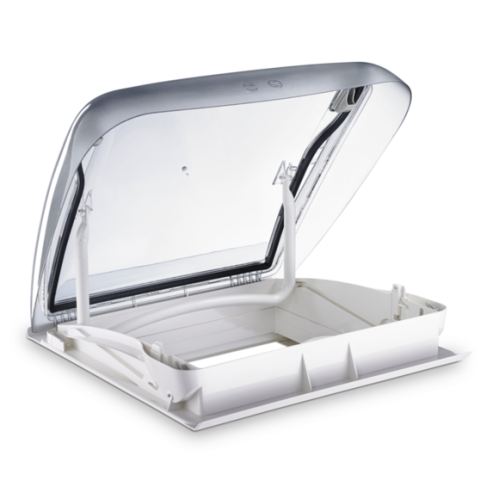

• Opens to three positions: fully open, half-open and bad-weather position
• Dome with double acrylic glazing
• Special shaped glass dome is aerodynamic
• Handle-operated
• Without or without forced ventilation
• 400 x 400 mm

REACH FOR THE SKY

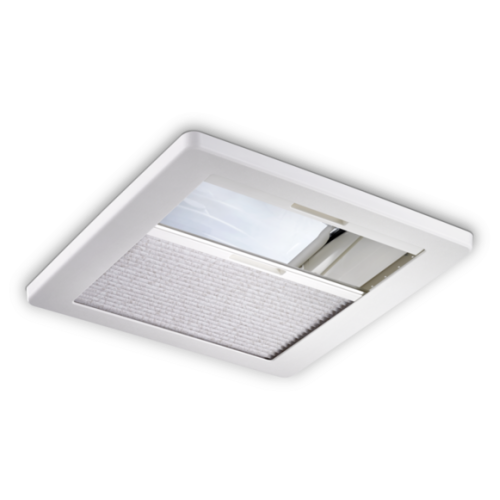

This handle-operated, double acrylic glazed Mini Heki Style roof light for motorhomes and caravans fits neatly into a standard 400 x 400 mm aperture. An inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! Operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position.

The Mini Heki Style is suitable for roof thicknesses from 25 - 42 or 43 - 60 mm and is available with or without forced ventilation.

SPECIFICATIONS

Scope of delivery Rooflight with manual in box
Dimensions product depth 520 mm
Dimensions product width 535 mm
Net weight 3.30 kg
Standard mount. material thickness 1 min 42 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 59 mm
Cut out height 400.00 mm
Cut out width 400.00 mm

ADDITIONAL

Opening angle max 50.00 °
Positions fixed 3
