Gastore Boxer/Relay/Ducato LPG 25ltr Tank kit
This chassis model is shared by three manufactures,
namely the Fiat Ducato, Peugeot Boxer and Citroen Relay. Its wide choice of engines, great drivability
and keen pricing, plus its ready availability in the used van market means it
is a firm favourite for both the professional and home build van converter.
For those converters who wish to install a refillable
underslung LPG tank, and do not have any desire to become an expert at
identifying all the different components required to complete an installation,
then this Gastore Kit is for you and will provide you with everything from the
cap on the fill point through to the regulator.
The kit also contains our unique low current, microprocessor, CE
approved, gas controller/display that allows the flow of gas to be controlled
right from your tank.

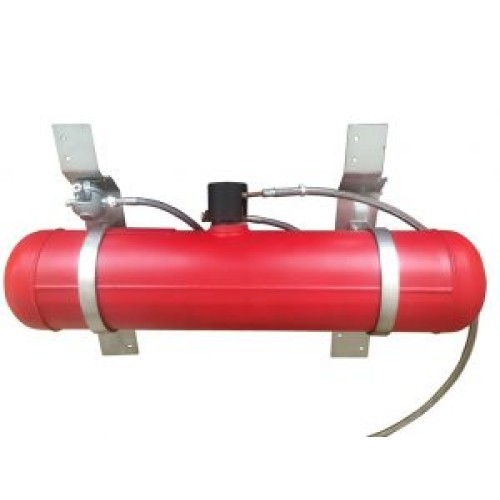

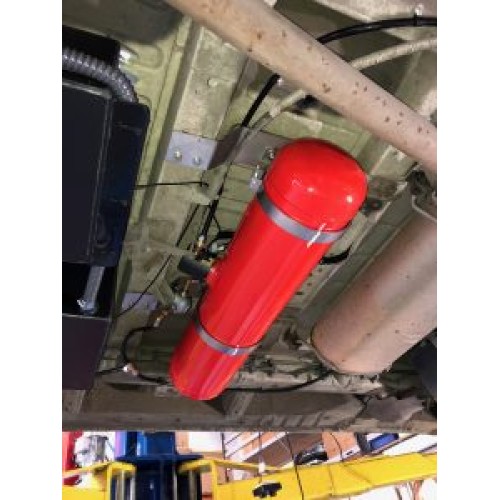

This 25 litre tank fits in the space behind the vehicles
exhaust silencer and will bolt up using existing hole positions in the stronger

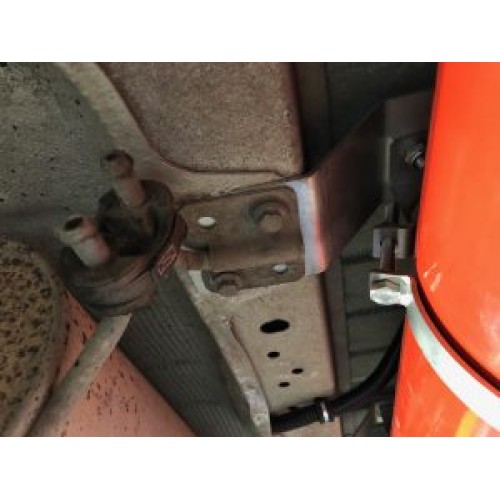

chassis members rather than thinner floor metal. So, no drilling required. The front mounts double up with the silencer
mounting brackets and the rear ones go up using the supplied nutserts. Simple !!! . The tank is then offered up and bolted to
these Stainless-Steel cross members.

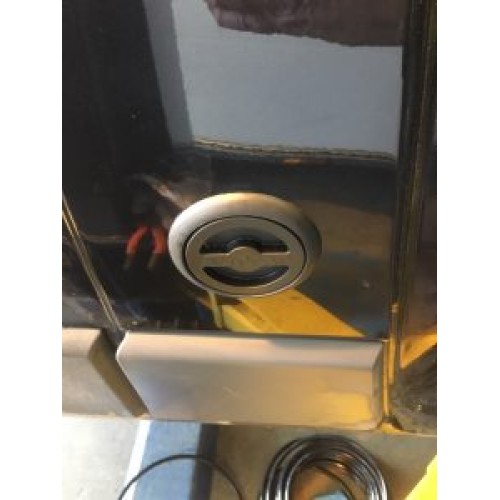

Once the tank is in place you can look at mounting the
fill point. this generally goes through the body at the base of the driver’s
side B pillar but can go wherever suits. A sill mounted version is also
available upon request. The kit contains 3 metres of fill pipe to allow for
easy routing up and over exhaust shields, through chassis members etc…
Hanging from the tank valve will be two wires 4 metres long,
one for the electronic solenoid, the other to the environmentally sealed level
sender. These cables can be run up to
the inside of the vehicle and connected to the supplied double fused junction
box along with the 12v feed from your leisure battery. Mount the Gastore power saver solenoid
control/display in your desired position and connect to the junction box.
Fiat Ducato - 2006 onwards
Peugeot Boxer – 2006 onwards
Citroen Relay -2006 onwards
