MA-VE Hydraulic Motorhome Levelling System

Fully Automatic MA-VE levelling System for your Motor home.

To have a stable and well-levelled motor home whilst parked is the dream of every motor home owner.

Your sleep will be much better, and the motor home won’t move when you do. Pots and pans will not slide away from the hob and changing a wheel will be simple and easy. MA-VE automatic levelling system will offer you all these and the combination of price and quality will surprise you. Designed and produced taking care of every detail. MA-VE have taken into account the best quality, comfort, reliability and performance, putting this system at the top of its category. It uses an electro-hydraulic pump and features a hand lever to retract the “feet” even in case of a breakdown of the unit.

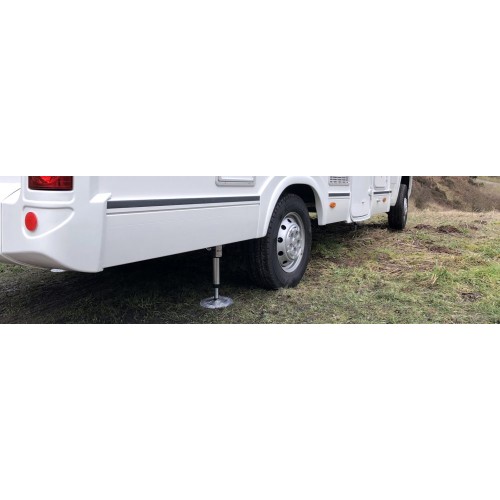

There are different models of lifting jacks available in MA-VE’s range. The various models are characterised by different lifting strengths, dimensions and operating abilities of the vehicle. All models of motorhome jacks are coated 5 times to increase durability against corrosion (especially in the UK). The large support plate prevents each jack from sinking into the ground which is strengthened by stainless steel ribs. These plates are also provided with drain holes and are strongly fixed to the jacks, they can rotate to adapt to all types of ground and still guarantee the correct support.

The electronic control unit can be used to operate the levelling both manually and completely automatically. It can also be used for different functions, such as the emptying of tanks. The user interface is a simple control panel that will integrate perfectly into your vehicle thanks to its discreet and elegant design.

Choose the MA-VE solutions motor home levelling system.

Ma-Ve is a hydraulic motorhome levelling manufacturer that has always been committed to creating the highest quality products. They are designed to last a long time as a result of the enormous passion and commitment. The staff are all dedicated to achieve a quality product with the latest equipment available.

The main objective at Ma-Ve is to be your ideal holiday partner. We will brighten your holidays by offering 5-star comfort in your motor home.

Let yourselves be enthralled. Most of all, Ma-Ve products will be your faithful travelling companion.

Advanced technology, simple and essential design, a careful treatment and research of the best technical solutions are all combined. Furthermore, with the use of the best materials we make our products unique on the market for reliability, ease of use, size and weight. All of this offered at an unbeatable price.

The mission is to work hard every day, therefore giving you the maximum satisfaction in the use of our products. Designed and manufactured completely in San Marino, the whole system is sourced and built from European parts.

The benefits of a motorhome levelling:

·        Simple levelling at the push of a button

·        Fully automatic hydraulic levelling jacks

·        Sturdy and vibration-free position

·        Change any tyre easily

·        Additional theft protection & piece of mind

·        Maintenance-free with 3-year warranty

·        Completely hydraulic levelling system

·        Safety feature prevents driving off with hydraulic jacks deployed

·        Ready for immediate use

·        Improved waste water drainage from sink and shower

·        Jacks are retracted hydraulically, preventing them from getting stuck in mud.

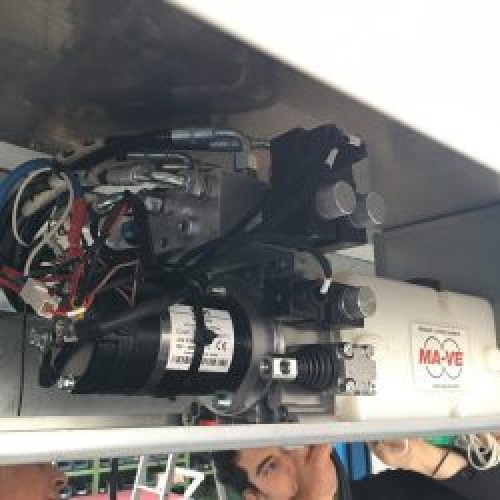

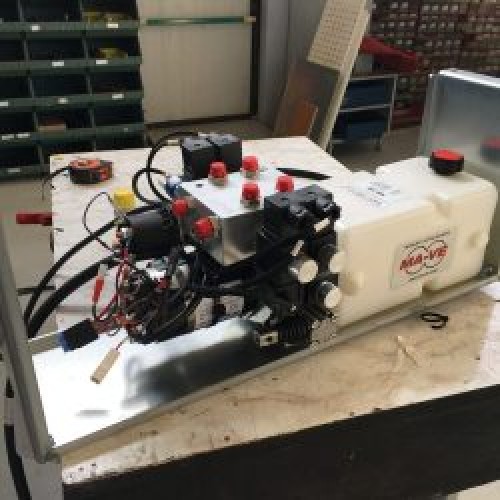

The Ma-Ve Pump:

•             Integrated adjustable pressure valve

•             Runs at 120 to 200 Bar

•             Use only top-Quality AT Fluid

•             Manual Lever (not drill) for emergencies

•             6 Port System (4 Power down, 2 Return)

•             Simple plug n Play Harness

The Ma-Ve Panel:

•             Slim Line Design

•             Push Button Control

•             Single RJ45 Connection

•             Smartphone Compatibility

•             Free App (No Separate Remote Needed)

•             Remote Access

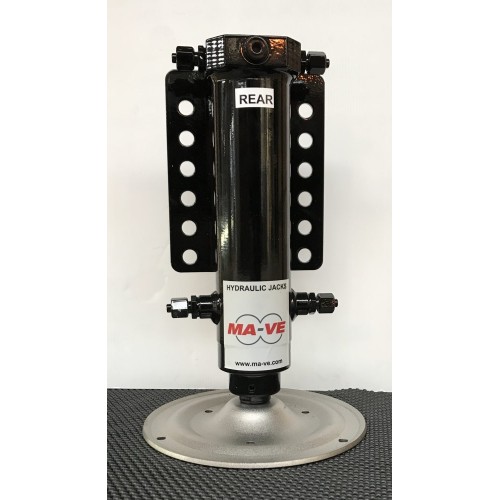

The Ma-Ve Legs / Rams

•             Multiple Lengths

•             3 Tonne Per Leg Capacity

•             Coated 5 times

•             Hydraulic Retraction

•             Multiple Port Connection

•             None Maintenance

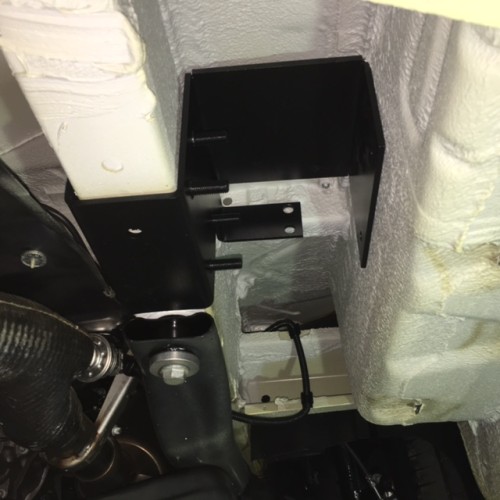

The Ma-Ve Brackets

•             Coated 5 Times

•             Laser cut to perfection

•             Use existing vehicle positions

•             Purpose Built

Ma-Ve Motorhome Levelling Tech Data

Weight:                                52-60kg

Lift Capacity:                      10000kg

Minimum Lift:                    150mm

Maximum Lift:                   295mm

Ground Clearance:           170-220mm

Voltage:                               12v DC

Amps in use:                      80amps

Current Standby:              <50mA
