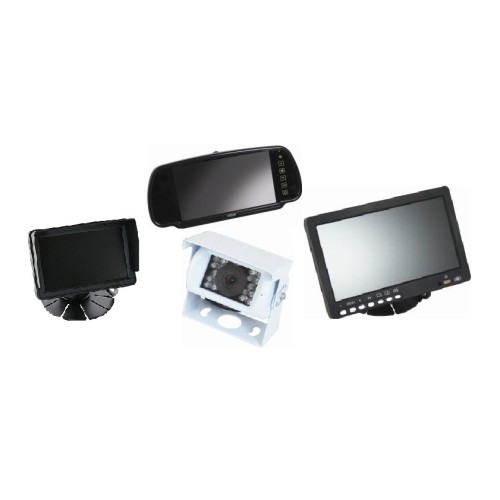

Ranger 5, 7" & Mirror Monitor / Roof mounted Reversing Camera

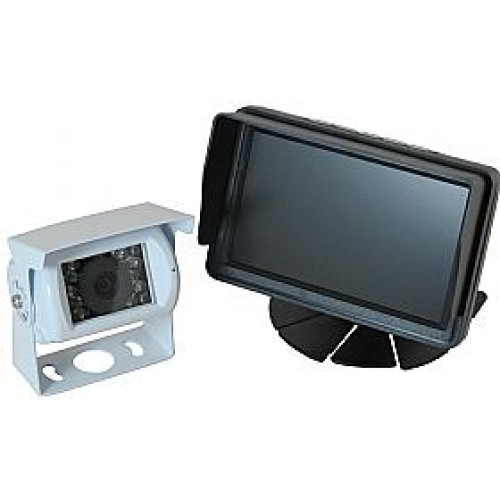

Ranger 210 - 5” Monitor / Roof mounted Camera System

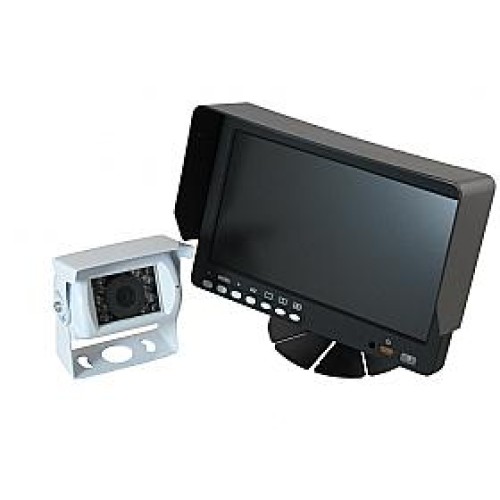

Ranger 310 - 7” Monitor / Roof mounted Camera System

This professional Rear View System features a high resolution TFT LCD panel, efficient slim housing design keeps the monitor as small as possible. Features built in speaker, built in sun visor; pedestal mount, 15m AV lead remote control and 120-degree Day / night, waterproof camera.

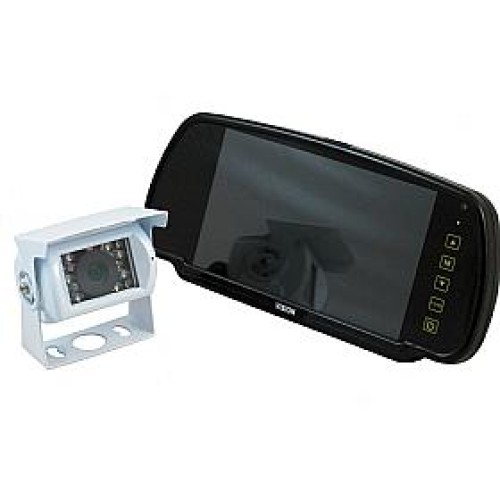

Ranger 410 - 7" Clip-over Mirror Monitor / Roof mounted Camera System

Rear-view Clip-over mirror with built-in 7" colour touch screen LCD TFT Monitor, 15m AV lead remote control and 120-degree Day / night, waterproof camera.

MONITOR FEATURES:

·        5" wide screen colour monitor - 5” Monitor

·        7" Digital wide-screen colour monitor - 7” Monitor

·        7.0” (16:9 ratio) Clip-over Mirror Mounting - 7” Mirror Monitor

·        Slim and compact housing - 5” & 7” Monitors

·        Selectable reversing grid - All Monitors

·        Picture adjustable in horizontal, vertical and mirror orientations - All Monitors

·        Brightness 350 cd/m2 - 5” Monitor

·        Brightness 450 cd/m2 - 7” & 7” Mirror Monitor

·        Resolution 800 x 480 - 5” Monitor

·        Resolution 1440 x 235 - 7” & 7” Mirror Monitor

·        Auto switching of cameras - All Monitors

·        Built-in speaker - All Monitors

·        2 AV inputs - All Monitors

·        Soft touch casing - 5” & 7” Monitors

·        Snap on sun visor - 5” & 7” Monitors

·        Dimensions: 130mm x 85mm x 50 mm - 5” Monitor

·        Dimensions: 170mm x 115mm x 20 mm – 7” Monitor

·        Remote control - All Monitors

·        12-24 volt operation - All Monitors

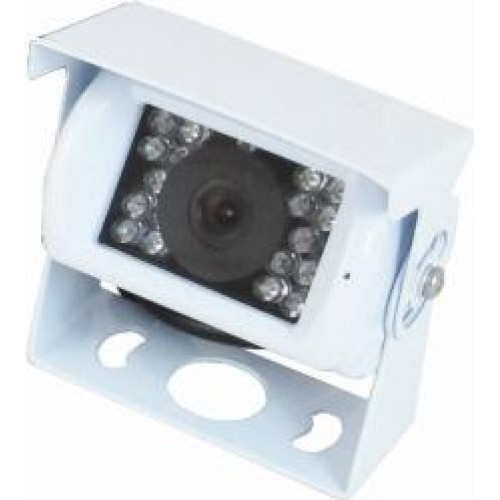

CAMERA FEATURES:

·        120 degree angle viewing

·        Sony Colour 1/3" CCD Chip Set

·        Built-in IR LEDS for night viewing

·        Built in microphone

·        Adjustable viewing angle

·        Slim-line connectors for easy cable routing

·        Waterproof (IP-66)

·        Dimensions (h)75mm x (w)80mm x (d)70mm (Inc. bracket & visor)

·        Max. current draw 125 Mamps

·        12 volt Operation

SYSTEM INCLUDES:

·        Wide screen colour monitor

·        DN-3 White roof mount camera

·        15m Slimline Lead

·        Monitor harness

·        Remote Control
