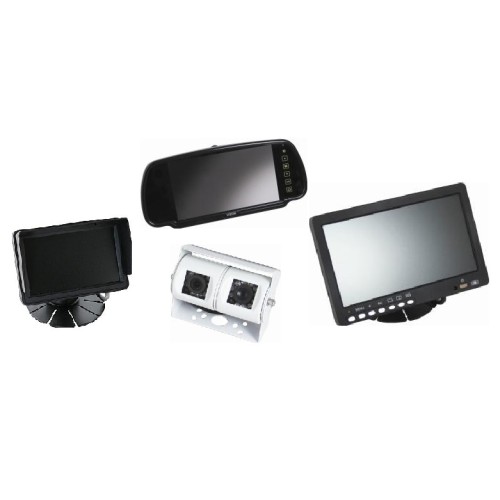

Ranger 5, 7" & Mirror Monitor / Dual Camera System

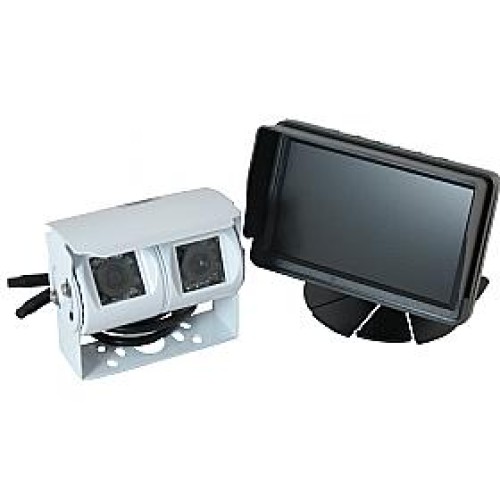

Ranger 230 - 5” Monitor
/ Dual Reversing Camera System
Ranger 330 - 7” Monitor / Dual Reversing Camera System
This professional Rear View System features a high
resolution TFT LCD panel, efficient slim housing design keeps the monitor as
small as possible. Features built in speaker, built in sun visor; pedestal
mount, 15m AV lead remote control. The twin camera is designed for long
vehicles and combines a 120-degree camera for reversing and a 45-degree angle
camera to provide a longer distance view when driving normally. Both cameras
are 1/3" Sony CCD cameras and feature LED's for additional night time
illumination. Camera is waterproof and features slimline connectors for easy
cable routing.

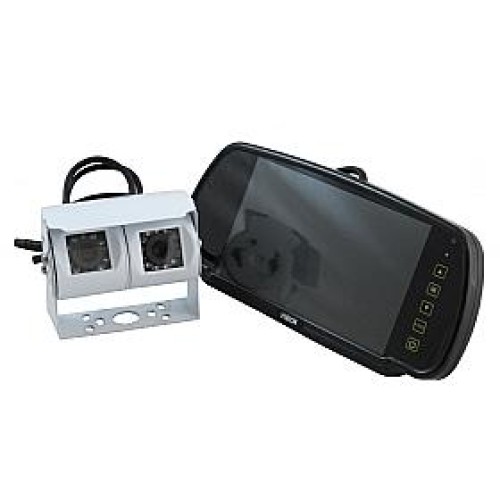

Ranger 430 - 7"
Clip-over Mirror Monitor / Dual Reversing Camera System
Rear-view Clip-over mirror with built-in 7" colour
touch screen LCD TFT Monitor, 15m AV lead remote control. The twin camera is
designed for long vehicles and combines a 120-degree camera for reversing and a
45-degree angle camera to provide a longer distance view when driving normally.
Both cameras are 1/3" Sony CCD cameras and feature LED's for additional
night time illumination. Camera is waterproof and features slimline connectors
for easy cable routing.
MONITOR FEATURES:
·
5" wide screen colour monitor - 5” Monitor
·
7" Digital wide-screen colour monitor - 7” Monitor
·
7.0” (16:9 ratio) Clip-over Mirror Mounting - 7” Mirror Monitor
·
Slim and compact housing - 5” & 7” Monitors
·
Selectable reversing grid - All Monitors
·
Picture adjustable in horizontal, vertical and
mirror orientations - All Monitors
·
Brightness 350 cd/m2 - 5” Monitor
·
Brightness 450 cd/m2 - 7” & 7” Mirror Monitor
·
Resolution 800 x 480 - 5” Monitor
·
Resolution 1440 x 235 - 7” & 7” Mirror Monitor
·
Auto switching of cameras - All Monitors
·
Built-in speaker - All Monitors
·
2 AV inputs - All Monitors
·
Soft touch casing - 5” & 7” Monitors
·
Snap on sun visor - 5” & 7” Monitors
·
Dimensions: 130mm x 85mm x 50 mm - 5” Monitor
·
Dimensions: 170mm x 115mm x 20 mm – 7” Monitor
·
Remote control - All Monitors
·
12-24 volt operation - All Monitors

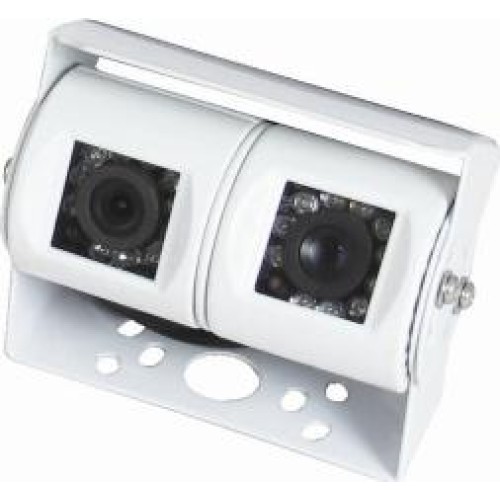

CAMERA FEATURES:
·
120 & 45 degree angle viewing
·
Sony Colour 1/3" CCD Chip Set
·
Built-in IR LEDS for night viewing
·
Built in microphone
·
Cameras independently adjustable to optimise
view
·
Slim-line connectors for easy cable routing
·
Waterproof (IP-66)
·
Dimensions (w)105mm x (h)85mm x (d)70mm (inc.
bracket & visor)
·
12 volt Operation
SYSTEM INCLUDES:
·
Wide screen colour monitor
·
DN-32 120 and 45 degree cameras
·
15m Slimline Lead
·
Monitor harness
·
Remote Control
