Sargent PX300 Battery Charger

Sargent PX300 Battery Charger

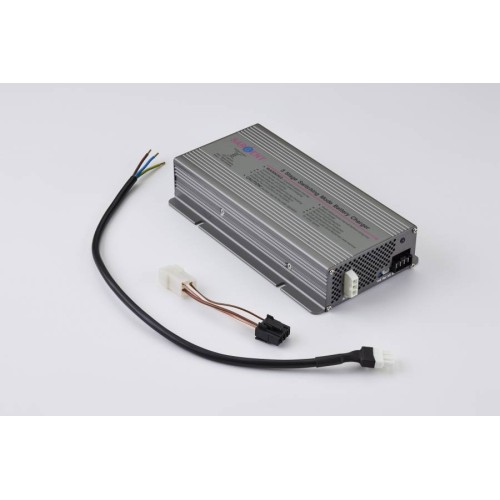

The PX300 is a 300W 3 stage intelligent motorhome, campervan and caravan battery charger and power supply.

This air-cooled unit is idea as a replacement for many makes and models of charger and is also suitable for new installations.

The PX300 comes with a short adaptor cable which matches the 12V connector on many Nordelettronica charger units. This cable can also be used with 6.3mm female spade terminals.
A short 230V mains cable is also supplied, for connection to a 5A fused 230V supply.

This unit is fitted to many manufactures such as Swift, Autotrail, Autosleeper.

Specifications:

Input:                                                 230V AC 50Hz 3A

Output:                                             13.6 to 14.4V DC 300W

Dimensions:                                     240 x 135 x 48mm (excluding connectors)

Weight:                                             1.18 Kg

Mating Input Connector:               JST L-Connector plug with pins

Mating Output Connector:           Molex HNF plug

Approvals:                                       IEC 60335-2-29:2003, IEC 60335-1:2001
