Votronic 1269 LCD-Battery Computer 400 S with Smart Shunt

Votronic 1269 LCD-Battery Computer 400amp S with Smart Shunt

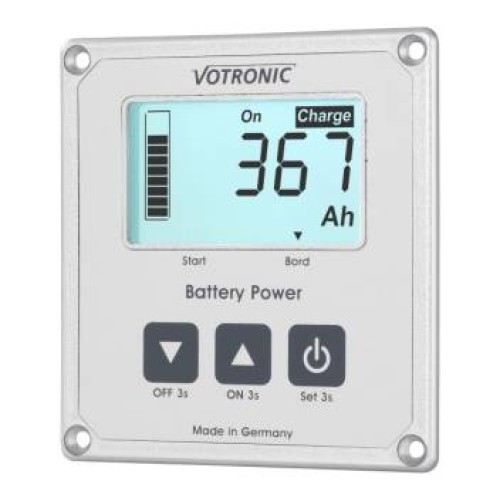

The VOTRONIC LCD Battery Computer S calculates the exact charging state of both the leisure and starter batteries and displays the charging state like a "fuel gauge for the battery". In contrast to simple ampere-hour meters, the residual capacity will be determined in ampere-hours (Ah) or the residual charge in % by means of programmed battery characteristics and will be displayed as state of charge. Apart from this, the LCD Battery Computer S provides the display of the battery voltage (V) of a second battery (starter battery). The smart-shunt, which is provided with the unit, is extraordinarily robust, very accurate and shows extreme overload capacity (refer to "Technical Data").

This is the 400A model.

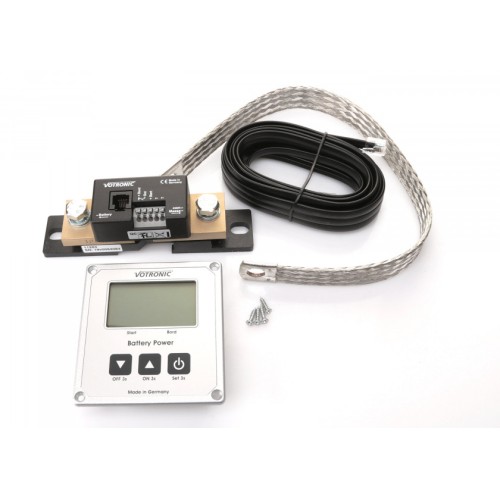

The computer comes complete with a "Smart Shunt" 5M data cable and an earth strap.

Product features

·        fuel gauge for the battery

·        Bright, white illuminated display

·        Battery charge level indicator adjustable for lead-acid, gel, AGM and LiFePO4 batteries

·        Remaining capacity in Ah and %

·        remaining running time in hours

·        charging / discharging currents in A

·        Voltage for 2nd battery in V

·        Programmable switching output with main switch function up to 300 A

·        For all 12 V and 24 V batteries

Smart Shunt

The installation of the LCD Battery Computer S is extremely simple: The precision measuring resistor (shunt) included in the scope of delivery (set) but also available separately is connected directly to the negative pole of the on-board battery and simply connected to the display via a plug-in cable.
