Brigade Backeye 360 Camera system.

Brigade Backeye^®360 Camera system.

Why 360° Vehicle Camera Systems?

All vehicles, motorhomes and campervans have blind spots – areas around the vehicle that are obscured to the driver by bodywork or machinery.

When manoeuvring, these blind spots present a significant danger to anything or anyone in the vehicle’s path and inhibit the driver’s ability to operate the vehicle safely.

Mirrors and single-view cameras help to see blind spots, but even with this extra assistance, the driver may still not see everything in the vehicle’s path. After all, they can only be watching the road or looking in one monitor or mirror at any given time. Research shows that in the time it takes to scan four mirrors, assess, and then react to hazards, even at speeds as low as 5kph a vehicle could travel as far as 10m.

4 Cameras 1 Image 0 Blind Spots

Eliminate Blind Spots and Reduce Collisions with 360° Cameras

Brigade has solved the problem of hidden blind spots with Backeye^®360, a choice of camera monitor systems that offer the ultimate view of a vehicle for the first time. Using brand new technology, they take vehicle safety to the next level.

360° vehicle camera systems are intelligent camera monitor products designed to assist low-speed manoeuvrability by providing the driver with a real-time surround view of the vehicle in a single image.

Presenting all-round visibility in one image saves the driver or operator having to process information from several mirrors or monitors in quick succession, making it easier to spot and assess possible hazards.

360 surround view camera system can also help reduce the length of time a driver has to ‘travel blind’, either switching between mirrors, monitors, windows and the windscreen, or viewing a limited area in a single mirror.

The Backeye^®360 Recordable option now provides the user with the ability to record a high-definition image to an external MDR of all the individual camera feeds.

How do 360° Vehicle Camera Systems Work?

Backeye^®360 is an intelligent camera monitor system designed to assist low-speed manoeuvring by providing the driver with a complete surround view of the vehicle in real-time.

Brigade 360° technologies work with four ultra-wide-angle cameras that each cover one full side of the vehicle with a viewing angle of over 180°. High-mounted on the front, rear and sides, the calibrated cameras capture all the surrounding areas including the blind spots of the vehicle or machine.

The four live images are simultaneously sent to an electronic control unit (ECU) where they are instantly processed, combined, blended and stitched. The distortion from the wide-angle camera lens is also corrected before delivering a clear, single, smooth, real-time image onto the driver’s monitor.

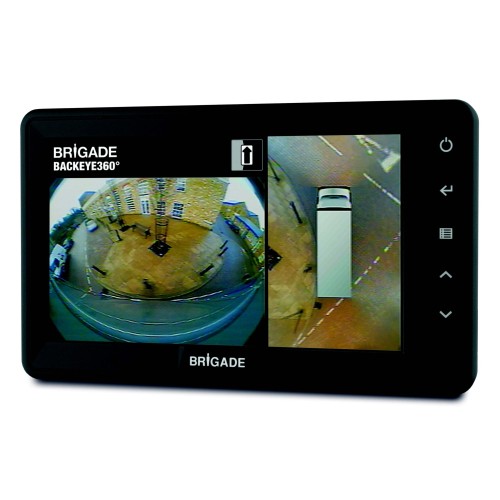

360° Surround View Camera System

360° vehicle camera systems will work on virtually any rigid vehicle or machine, large or small. The distance of the viewing area can be set to suit the application. The flexibility of the Brigade systems means there are solutions suitable for both on- and off-road applications.

Auto-switching Triggers

Each system has programmable triggers. These can be activated to deliver a view better focused on relevant danger areas when manoeuvring, e.g. selecting reverse gear displays a rearview alongside the 360° image, or indicating can add a side view.

Recordable

The BN360-300 is compatible with an optional Mobile Digital Recorders for recordings of individual camera channels.

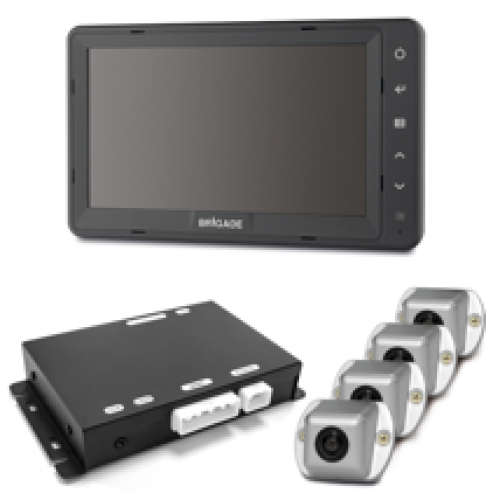

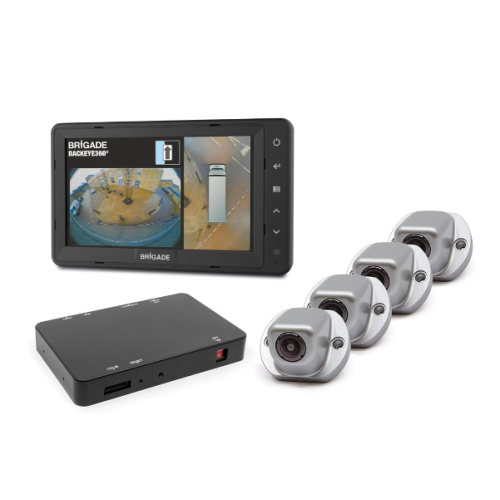

Backeye ®360 Motorhome Camera System

·        Full Real-time 360° View - Full 360° bird’s-eye view of the motorhome’s surroundings

·        Ultra-wide Cameras- -Four cameras each covering one full side of the vehicle with a viewing angle of over 180°

·        Configurable Setup - Backeye®360 will work on most vehicles and machines, large or small

·        High Definition - HD image options available

Features:

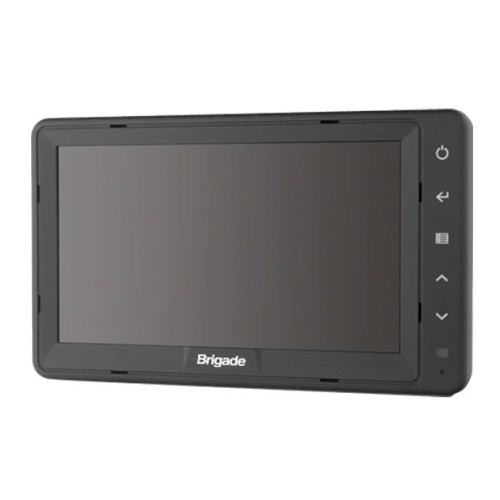

·        7” AHD LCD Monitor

·        720p HD 360° image

·        Configure & customise set up via PC calibration software

·        Left, right, reverse & speed signal triggers

·        Customisable overlay guidelines per camera view

·        2 x video outputs

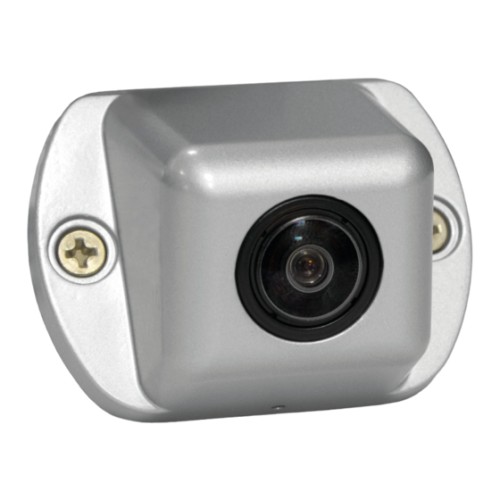

·        Ultra-wide viewing angle cameras: (HxV) 182° x 118°

·        1/4” CMOS sensor

·        Video output: AHD 1.0 and NTSC

·        360 view and individual channels recordable on Brigade MDR recorders

·        IP69K cameras

·        12-24Vdc

·        Size (WxHxD): Monitor: 196 x 118 x 26mm

·        Size (WxHxD): ECU: 178 x 113 x 26mm

·        Size (WxHxD): Camera: 61 x 50 42mm

·        5 year warranty
