CAMOS JEWEL CAMERA SYSTEMS FOR X250/X290 DUCATO/BOXER/RELAY CAMPERVANS

For Campervans with a blind spot at the back, Camos's "Jewel" rear-view camera system is the neatest and most effective way of getting rearward vision, both when driving forward and when reversing.

Up until now, if you wanted to be able to see what was going on behind your vehicle when driving normally and when reversing, the only options were a camera with either twin lenses or a motor to change the camera's viewing angle. Neither system is ideal: motorised cameras tend to be expensive and can fail, while twin-lens models are either expensive or clunky looking and of poor quality.

"Jewel" systems change views depending on whether the vehicle is in a forward or reverse gear and yet only have one lens and no moving parts. They're very discreet and, being made by Camos, you can be assured that they are very well made and will last for many years. How do they work? Ingenious software is how, and the results are amazing.

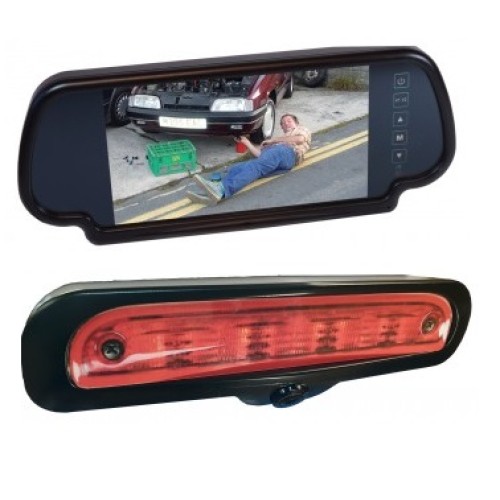

This is the perfect rear-view camera for anyone who has a Fiat/Peugeot/Citroen X290 panel van. Because it incorporates a Camos Jewel camera, there are two views: down to the rear of the van when reversing and back down the road when in a forward gear.

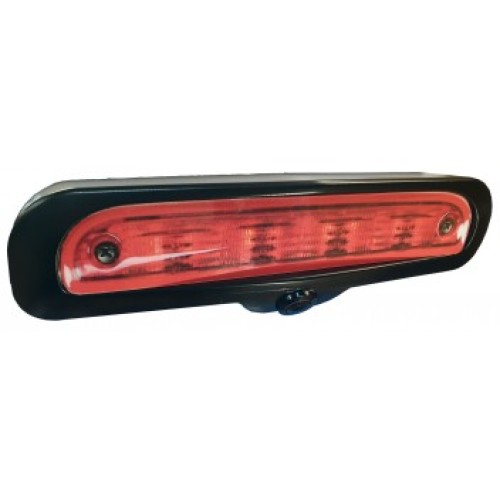

The housing simply replaces the existing high-level light and uses the existing 12V lights, so no additional wiring is required. Simply connect the camera's patch lead to the main cable that connects to the monitor.

Fits rear brake light for the follow:
Fiat Ducato - 2006 onwards
Peugeot Boxer - 2006 onwards
Citreon Relay – 2006 onwards

CAMERA SPEC:

Camera Type:                               1.3 Mega Pixel CMOS

Viewing Angle Drive view:           80(Horizontal) 60 (Vertical) 95 (Diagonal)
Viewing Angle Reverse view:      120(Horizontal) 90 (Vertical) 140 (Diagonal)

Min. Illumination:                          0.2Lux (F=2.4)

Operating temp:                            -35 degrees C to 75 degrees C

Camera protection rating:           IP68

Weight:                                            0.75kg

MONITOR SPEC:
