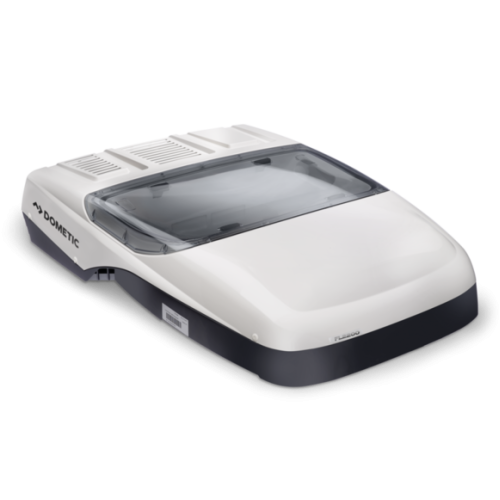

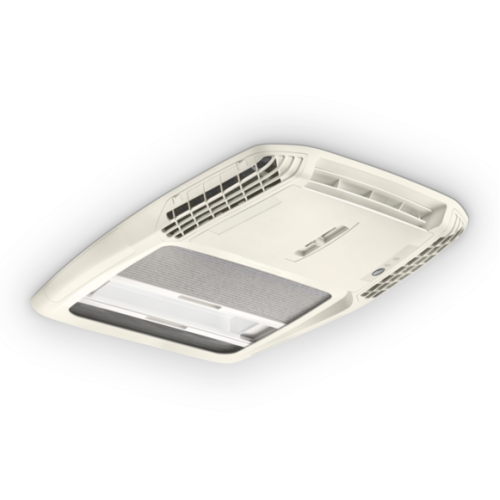

Dometic FreshLight 2200 Air Conditioner
Dometic Freshlight 2200 Air Conditioner and rooflight combined
The Dometic Fresh light Roof air conditioner with
integrated rooflight (fixed window). The air conditioner has 2100-watt cooling
capacity for 230-volt stationary operation, Rooflight with active ventilation
system and single-pleated blind.
Scope of delivery: Roof air conditioner,
remote control, air distributor unit with LED illumination, Dometic DC Kit 2, fixing
and installation materials, installation and operating instructions.
·

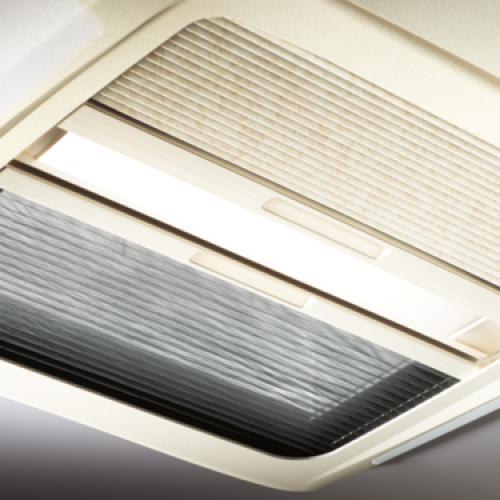

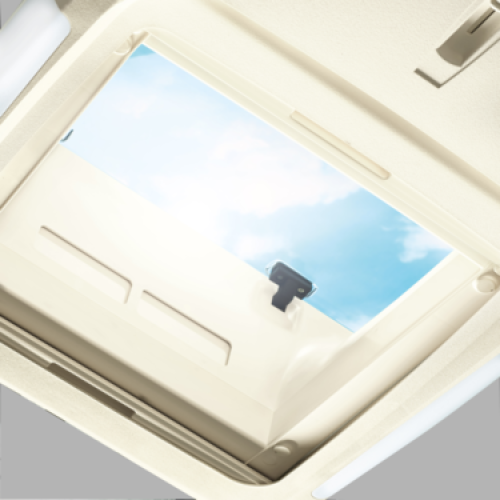

Rooflight with single-pleated blind
·
Active ventilation system
·
Thermostat temperature control
·

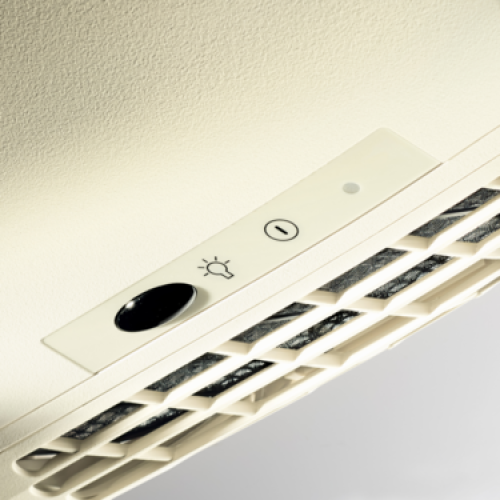

Control panel with integrated, dimmable LED
lights
·
Energy-efficient heat pump system for cooling
and heating
·
Flat, aerodynamic design
·
Perfect installation results, unit adjusts to
the roof thickness
·
Individual air flow regulation with automatic
blower control
·
Temperature and blower speed are conveniently
set by remote control
·
For stationary operation (230 volts AC)
Technical Data |
|
Cooling/Heating capacity
(kW) |
2.2 |
Capacity (BTU/h) |
7500 |
Power (V/Hz) |
230 / 50 |
Dimensions (LxWxH). (in) |
1105 x 758 x 210 |
Dimensions (roof
opening) (mm) |
400 x 700 - Cannot be easily transferred |
Dimensions (inside box)
(mm) |
880 x 550 x 53 |
Weight (kg) |
42 |
Consumption, cooling
mode (W) |
950 |
Consumption, heating
mode (W) |
1200 |

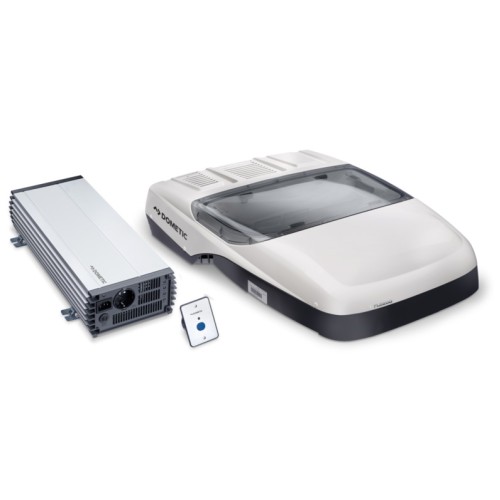

12v DC inverter Kit
The 12v DC inverter kit is wired into the motorhomes/campervans vehicle battery and will only work whilst the engine is running, as the power output of the air conditioner unit would flatten the leisure batteries in a very short period of time (matter of minutes). - This is an an aftermarket inverter (Not Dometic) with switching relay.
