Fiamma F80 Awning - Mercedes Sprinter, VW Crafter

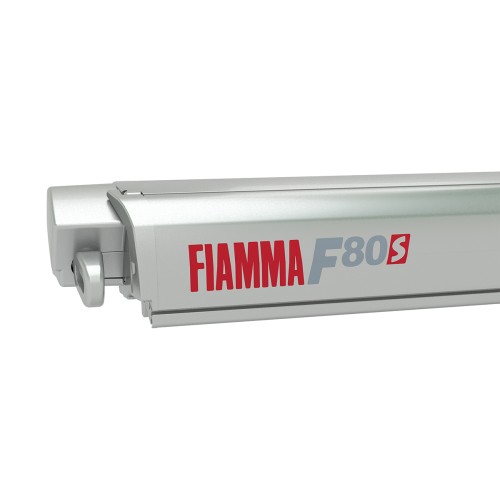

Fiamma F80s, the new, modern and compact awning for roof installation
An awning with an extremely small cross-section to integrate it even better in the contour of the vehicle.

The technical solutions which have been implemented mean a more compact awning protrusion. The introduced innovations, like dual prearrangement as standard equipment for LED lighting on the lead bar and on the case, in addition to three guides on the lead bar, makes the Fiamma F80s the go-to solution for all roof-mounted installations.

Dual LED Predefined position in lead bar + case: housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar

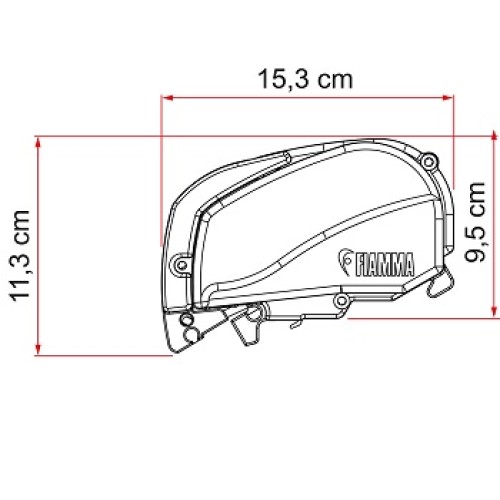

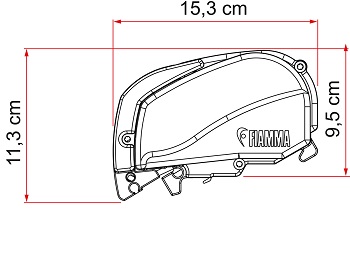

Compact section: case and lead bar are more compact but as strong as ever. The awning has improved aerodynamic performance as a result of having a 20% slimmer cross-section than the Fiamma F65s model
Triple Guide: three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories
Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
Aluminium end caps: new design for the aluminium end caps for maximum strength
Extra-Strong Arms: wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning
Rafter: central tension rafter in aluminium delivered as standard for awnings from 400cm long
Installation brackets: the awning is provided without brackets, simply choose the most suitable one for your vehicle. More than 40 different kits to choose from

SELECTION GUIDE

VEHICLE:

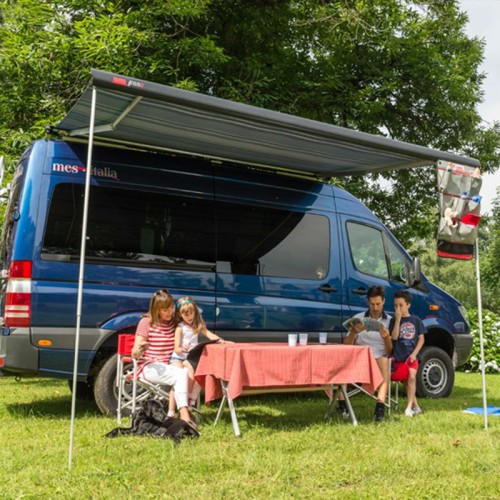

Mercedes Sprinter / VW Crafter (2006 onwards)

MWB (L2 H2)- 290, 320 - 2.9m, 3.2m
LWB (L3 H2) -  370, 400, 425 - 3.7m, 4.0m, 4.25m
XLWB (L4 H2) -  450 - 4.5m

Please contact us on other variants.

OPERATION: Winch opening and closing. Operation by handle. Electric motor optional.
POSITION: Designed for roof installation with adaptor optional available.
AWNING ENCLOSURE: Optional Privacy Ultra-Light, Privacy Room, front and side panels Blocker & Side.
COLOURS & MATERIALS:

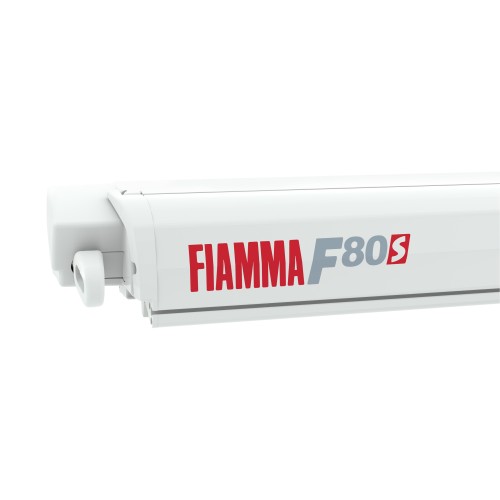

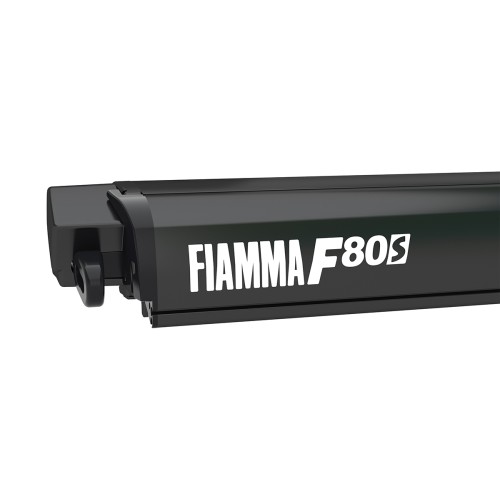

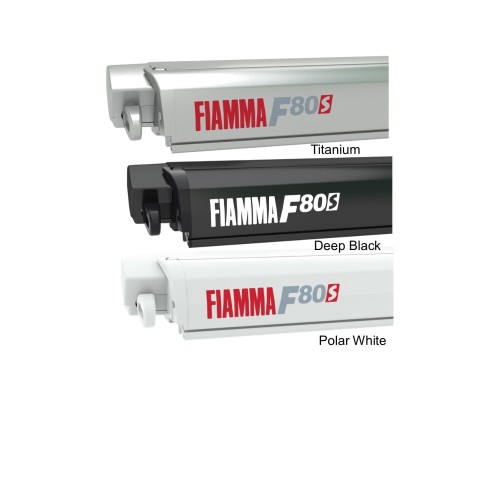

Case: in extra strong extruded aluminium. Very light yet highly resistant external coating in either Polar White, Titanium or Deep Black.

Fabric: Cool and cheerful vinyl canopy. UV resistant, waterproof and washable, with bright colours on both sides. Royal Grey and Royal Blue

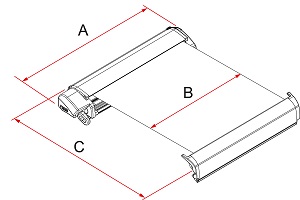

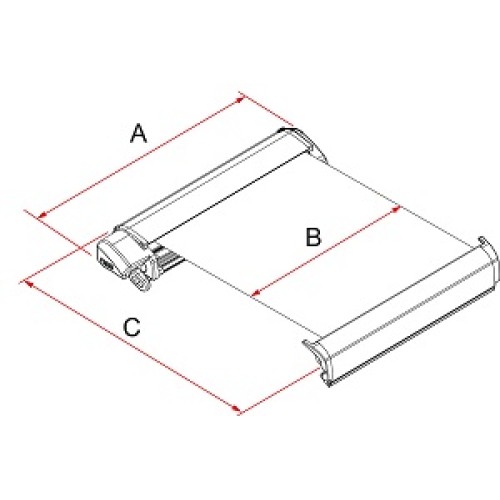

Model                  A                           B                            C                            Weight                 Shade surface

F80s 290              290 cm                 278 cm                 200 cm                 27.0kg                  5,6 m2

F80s 320             320 cm                 308 cm                 250 cm                29.0kg                  7,7 m2

F80s 340              340 cm                 328 cm                 250 cm                30.0kg                  8,2 m2

F80s 370              370 cm                 358 cm                 250 cm                32.0kg                  9,0 m2

F80s 400              400 cm                 388 cm                 250 cm                34.0kg                  9,7 m2

Other vehicles that require alternative adaptor brackets, please contact us for further details.
