VB Full-Air Suspension 2C - Fiat Ducato, Citroen Relay, Peugeot Boxer 2006 > onwards X250 X290

VB FULL AIR SUSPENSION SYSTEMS FOR CAMPERVANS, VANS & MOTORHOMES

·         BETTER SAFETY AND COMFORT ON THE ROAD.

·         THE BEST SOLUTION FOR SUSPENSION PROBLEMS.

VB-FullAir: full air suspension with extensive control options

Full air suspension is an automatic, adjustable solution to a (suspension) problem where the existing leaf or coil spring suspension is replaced by a full air suspension system. This system includes air springs, shock absorbers, height sensors, a compressor and an electronic control unit (VB-ASCU).

VB-FULL AIR SUSPENSION SYSTEMS FROM VB-AIRSUSPENSION COME WITH A REMOTE CONTROL THAT CAN BE USED TO EASILY OPERATE VARIOUS FUNCTIONS OF THE SUSPENSION SYSTEM.

The air suspension system filters out unevenness in the road surface, improving ride comfort. While driving, the vehicle will constantly remain at the ride height set by VB-Air suspension during installation. The standard ride height is determined during the development of the air suspension and is fixed.

The ride height is the ideal height for comfort and stability. The driveability and stability of the vehicle are improved, which in turn increases safety. The access/loading platform height can be raised and lowered when the vehicle is at a standstill (in some cases with the handbrake on), allowing for easy vehicle entry/exit and for loading/unloading goods.

DISCOVER THE VARIOUS FULL AIR SUSPENSION SYSTEMS.

Our full air suspension systems can be divided into three different categories:

VB-FullAir 2C rear axle: VB-FullAir 2C front axle

VB-FullAir 3C

VB-FullAir 4C

A VB-FULLAIR SYSTEM IS OFTEN FITTED TO MEET THE FOLLOWING REQUIREMENTS:

·         INCREASED RIDE HEIGHT

·         REDUCED OFF-CENTRE LEVEL

·         REDUCED VEHICLE ROLL

·         IMPROVED SUSPENSION COMFORT

·         IMPROVED DRIVING CHARACTERISTICS

·         INCREASED SAFETY

·         IMPROVED STABILITY

·         CONTROL OPTIONS (E.G. VEHICLE CAN BE RAISED/LOWERED)

BENEFITS OF VB-FULLAIR:

·         CONTROL OPTIONS

·         CONSTANT RIDE HEIGHT

·         IMPROVED COMFORT

·         OPTIMUM ROAD HOLDING

·         INCREASED STABILITY

·         COMFORTABLE RIDE FOR PASSENGERS

·         IMPROVED PROTECTION FOR FRAGILE GOODS

·         LESS WEAR ON TYRES/BRAKES

ADJUSTING THE HEIGHT OF THE VEHICLE IS SIMPLE.

VB-FullAir 2C

VB-FullAir 2C is a complete air suspension system on the front or rear axle of the vehicle. 2-Corner indicates that two height sensors are fitted. VB-FullAir 2C for the front axle is only available for certain makes and types.

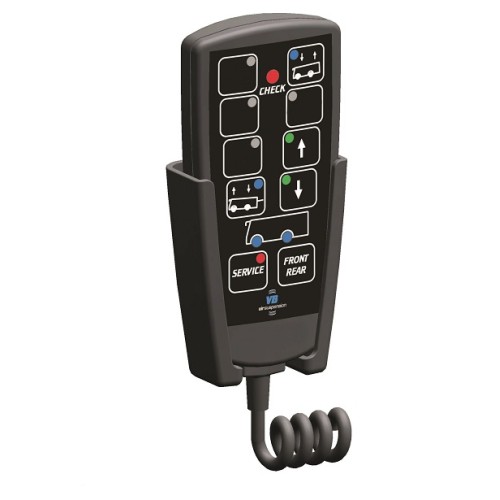

The VB-FullAir 2C system is supplied with a remote control. You can use the remote control to easily control various functions of the system.

VB-FULLAIR 2C - LCV

·         Memory function – stored height is activated. < 30 km/h

·         Manual control to vary the loading/unloading height. < 0 km/h

The height of the air suspension can only be set when the vehicle is at a standstill (for loading and unloading).

VB-FULLAIR 2C - MOTORHOME

·         Ferry – the rear is raised to the maximum level, for example to make the vehicle easy to drive onto a ferry. < 30 km/h

·         Load space – the front axle is automatically raised, and the rear is lowered to the maximum level to make it easy to load and unload the vehicle at the rear. < 0 km/h

·         Manual control to vary the loading/unloading height. < 0 km/h

The Ferry function lets you temporarily adjust the ride height at a maximum speed of 30 kilometres an hour. The other functions can only be operated when the vehicle is at a standstill.

THE VB-FULLAIR SETS INCLUDE:

·         Main springs*

·         Bellows

·         Height sensors

·         VB-ASCU (control unit)

·         Remote control

·         Shock absorbers (in most cases)

·         Air tank*

·         Fasteners*

·         Fitting instructions

·         User manual

·         Approval documentation

*depending on installation

OPTIONS: ALWAYS CONTINUE TO OPERATE THE AIR SUSPENSION.

Emergency valve kit

The VB-FullAir system can be pressurised by means of filling valves in the event of a possible electronic failure or a defect in the compressor. The vehicle can be brought up to driving height again by means of an external air supply so that the journey can be continued.

'Extra time' module

This module in VB-ASCU ensures that the air suspension remains active for one hour after the ignition is switched off. The vehicle's ignition can therefore be switched off, while all the functions of the air suspension remain active.

Additional switch

This is an additional switch that allows the high/low function of the air suspension to be controlled from a different location in the vehicle, for example at the rear door. The advantage of this is that the driver does not have to walk to the cabin to operate the air suspension.

Software version

A modified software version can be selected depending on the application and use of the vehicle.

• VB-FullAir 2C is a full air suspension system for the front or rear axle

X250 X290 chassis

Fiat Ducato, 2006 > onwards

Citroen Relay, 2006 > onwards

Peugeot Boxer, 2006 > onwards
