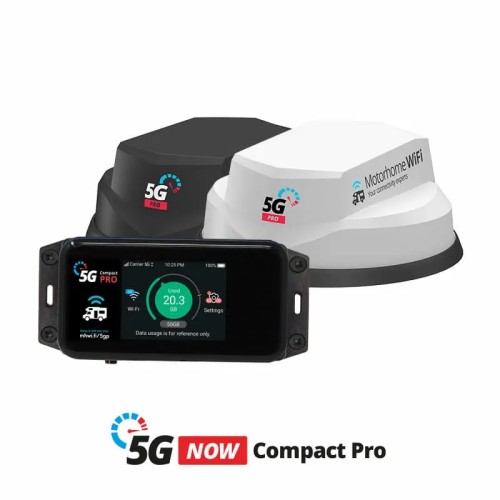

Motorhome WiFi 5G Aerial - 5G Now Compact Pro
Motorhome WiFi 5G Now Compact Pro
The 5G Now Compact Pro has an impressive, high-level
specification offering even the most advanced user everything they need to stay
connected whilst travelling. Ideal for 2 or more users, streaming TV content
and business use in rural and remote locations across the UK and Europe.
With its LCD touch screen interface and colour display the
Compact Pro is both easy to use and packed with performance. Providing a secure
wireless connection achieving incredible download speeds for up to 32 devices
and one wired device, it delivers for even the most demanding users.
Motorhome WiFi’s futureproof 5G Ready Antenna offers
advanced design and construction with patented technology and is highly
effective at receiving weak 4G signals.
As well as being ground plane independent, it is still able
to benefit from a ground plane where available. The 5G antenna has a new
sealing skirt which offers an extra level of weatherproofing when fully
compressed.
It also has some market leading certifications including
IP69K and IK10 meaning it can withstand a hot pressure washer and can withstand
5KG weight at 40cm.
At just 75mm high (2.9”) the roof antenna sits lower than
your skylights. The underside consists of a non-permeable 3M adhesive foam pad
and an adjustable threaded internal brace, through which the cables travel into
the cabin, for a totally weatherproof installation.
Once the antenna is fitted, there is no need for any
additional sikaflex or adhesive sealant, the product is totally self-sealing.
5G Antenna & 5G Now Compact Pro
- 2G/3G/4G/4G+/5G
- Fastest
possible 4G and 5G Speeds
- LTE
CAT 22 – 3.8Gbps Download
- Touch
Screen Menu & Colour Display
- Quick
Mount Docking Station
- Advanced
4500mAh Battery
- 32
Wireless Devices
- 25-50m
WiFi Range
- Small
Compact Design
- Easy
to use smart phone app
Ideal for: Use in 5G areas, early adopters and technology
enthusiasts
Motorhome Wifi’s industry leading package brings you the
fastest 4G and 5G speeds, now.
The 5G Now Compact Pro has an impressive, high-level
specification offering even the most advanced user everything they need to stay
connected whilst travelling. Ideal for 2 or more users, streaming TV content
and business use in rural and remote locations across the UK and Europe.
With its LCD touch screen interface and colour display the
Compact Pro is both easy to use and packed with performance. Providing a secure
wireless connection achieving incredible download speeds for up to 32 devices
and one wired device, it delivers for even the most demanding users.
The fastest 4G connection, fully futureproof for 5G
compatibility.
The UK’s 5G coverage increased exponentially during 2021,
with Ofcom estimating that 5G is now available outside of 50% of premises in
England. Rural 5G is progressing also, with networks now able to broadcast 5G
on low frequency 4G bands; crucial to remote coverage.*
Demand on mobile networks is increasing and sometimes it’s
not just about getting a strong signal, but out-competing the number of other
devices in a given area. Thanks to the fastest Category 22 4G to rival the
latest smartphones, the router can establish upto 7 simultaneous download and 3
upload connections.
The full 5G package including router, vehicle roof mounted
antenna and internal docking station is less than a Netgear Nighthawk M5 router
and uses the same leading Qualcomm Snapdragon X55 modem.
Pack Contents
- Fully
certified and patented 3G/4G/5G roof antenna
- 80cm
antenna cables
- 5G
Compact Pro unlocked router
- Motorhome
WiFi Quick Mount dock
- 12v
hard wire vehicle power supply
- Full
antenna installation instructions and operating manual
- Motorhome
specific installation kit exclusive to Motorhome WiFi (maximum roof
thickness 70mm)
- Smarty
PAYG SIM – unlimited UK data, no contract
Tech Specs
5G
Ready Antenna |
|
3G Compatible |
Yes |
4G
Compatible |
Yes |
5G Compatible |
Yes |
Water
Ingress Rating |
IP69K |
Peak Gain without Ground Plane |
698-960MHz: 3dBi / 1710-2700MHz: 6dBi / 2700Mhz-3800MHz:
7dBi / 4900-6000MHz: 8dBi |
Peak
Gain with Ground Plane |
698-960MHz:
6dBi / 1710-2700MHz: 8.5dBi / 2700-3800MHz: 9.5dBi / 4900-600MHz: 10dBi |
Ground Plane Independent |
Yes |
Can
benefit from a Ground Plane if fitted to a metal roof |
Yes |
Cable Length |
80cm |
Colour |
White
or Black |
Dimensions |
75 x 180mm |
Weight |
500G |
Optional Fitting Methods |
Yes |
5G
Compact Pro Router |
|
Portable |
Yes |
LED
Display |
Touch
Screen Menu & Colour Display |
4G Compatible |
Yes |
4G
LTE-A |
Yes |
5G Compatible |
Yes |
LTE
Class |
Category
22 LTE |
Wireless Devices |
32 |
Wired
Devices |
1 |
Colour |
Gloss Black |
Dimensions |
H75 x
W140 x D60mm including Docking Station |
Download Speeds |
3.8Gbps Down / 300Mpbs Up |
SIM
Size |
Nano |
WiFi Repeater Function |
No |
Power |
12v
hard wire supplied |
VOIP Support |
Yes |
