Sunshine Solar 12v Pure-sine inverters (300watt to 3000watt)

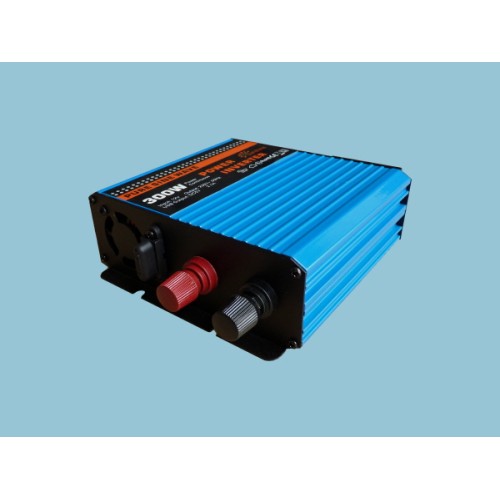

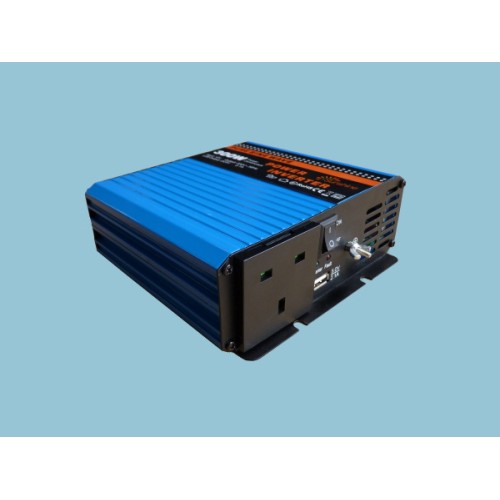

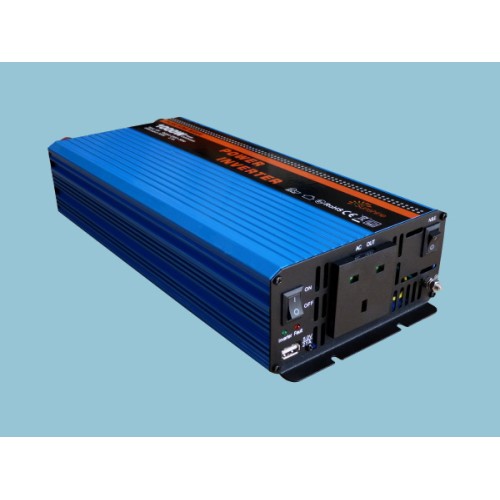

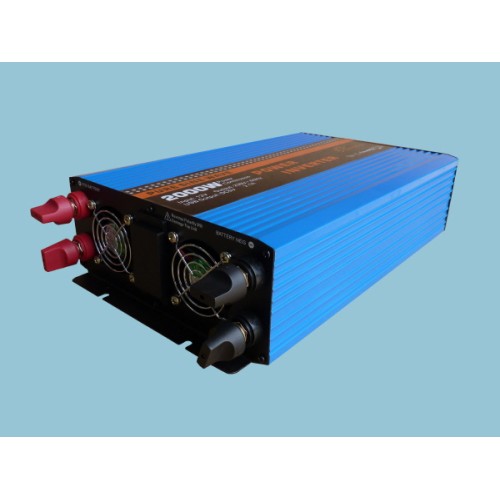

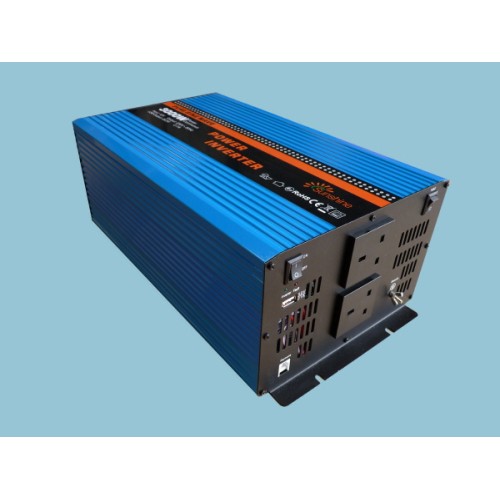

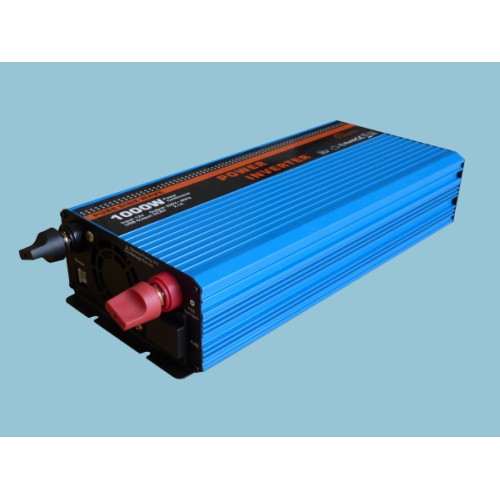

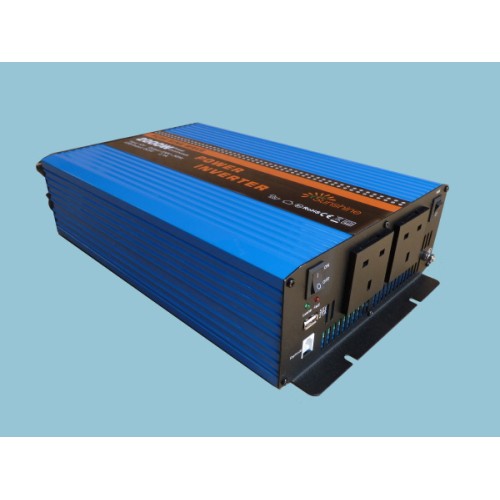

12V Pure Sine Wave Sunshine Power Inverter
Sunshine Pure Sine Wave Inverters are suited for sensitive electronic equipment, allowing motors to run faster, quieter and cooler, preventing computer crashes, noises & glitches in monitors, TV, game consoles etc. Convert DC power from your battery into AC power enabling use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery. (small inverters come with crocodile clips or Cigar socket)
Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.
Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK output socket giving you a stable power supply for running your electrical appliances.
FEATURES
·
Soft Start
·
USB Port
·
Single (300w, 600w, 1000w) or Dual AC outlets
(1500w, 2000w, 2500w, 3000w)
·
USB output 5VDC - 2.1A
·
Over-temperature protection
·
Low battery voltage alarm
·
Low battery voltage shutdown
·
High battery voltage shutdown
·
Overload protection, short circuit protection,
polarity reverse connection protection
·

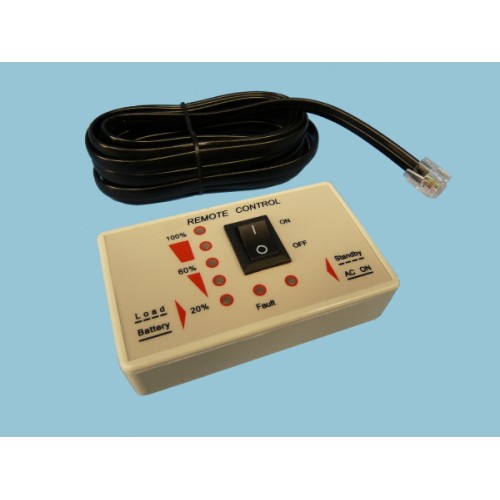

Remote On/Off Switch
Specifications
|
300W |
600W |
1000W |
1500W |
2000W |
2500W |
3000W |
Output Waveform |
pure
sine wave inverter |
||||||
Continuous
Power |
300W |
600W |
1000W |
1500W |
2000W |
2500W |
3000W |
Surge
Power |
600W |
1200W |
2000W |
3000W |
4000W |
5000W |
6000W |
Input
Voltage |
10-15V
DC |
||||||
Output
Voltage |
230V AC |
||||||
Frequency |
50Hz |
||||||
Efficiency |
>85% |
||||||
Dimensions
(L x W x
H) |
152 x 152 x 55mm |
235 x 150
x 70mm |
340 x 150
x 70mm |
330 x 220 x 90mm |
360 x 220 x 90mm |
422 x 220 x 90mm |
402 x 220
x 150mm |
Weight |
935g |
1.77kg |
2.62kg |
4.1kg |
4.77kg |
5.69kg |
7.95kg |
Certification CE-EMC/LCD RoHS E-Mark
Wired into Motorhome system with include an auto-switch.
(this system is protected so if you plug into mains there are no nasty shocks) –
We would only recommend inverters over 1500watts to be fitted this way.
